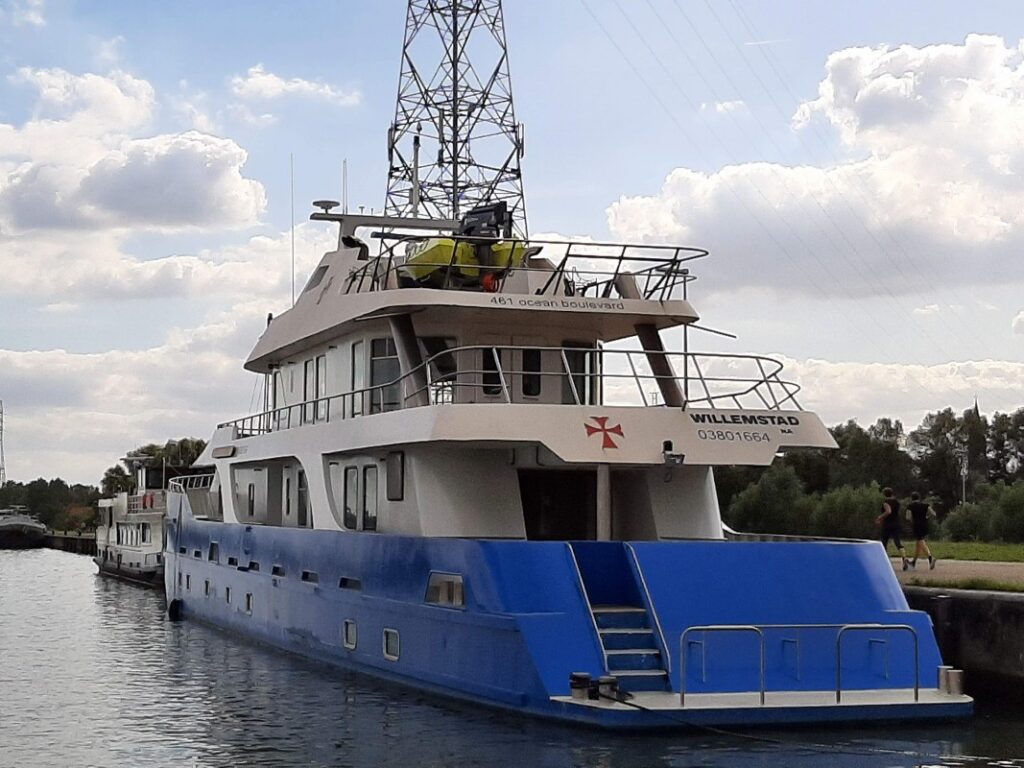

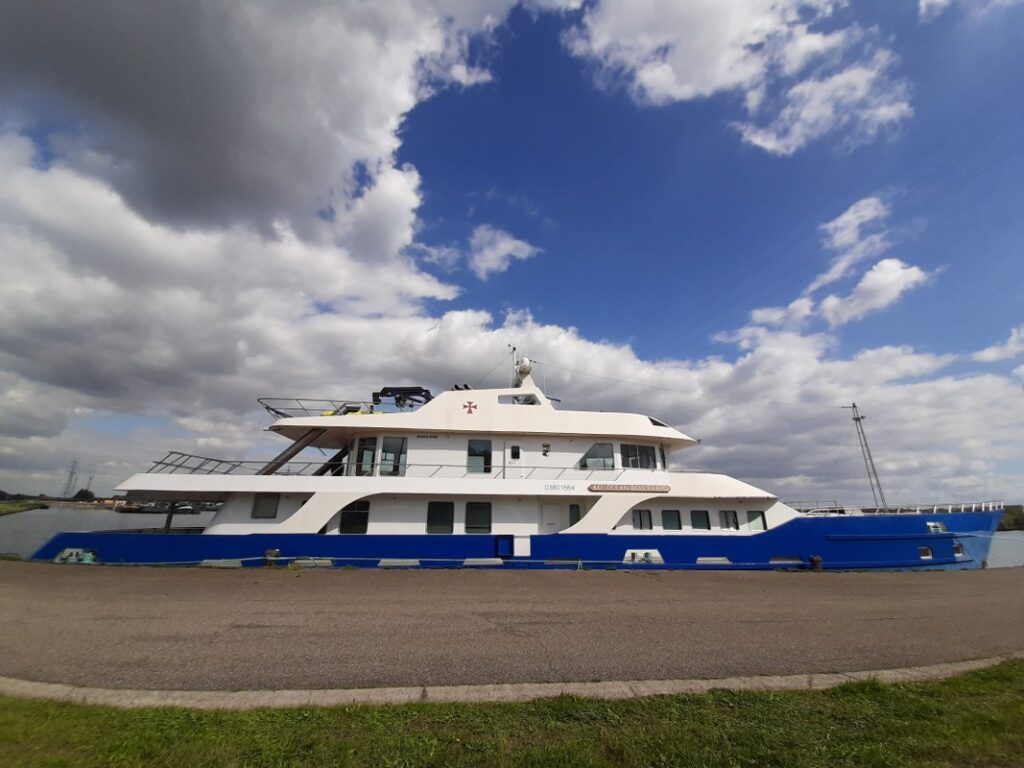

Explorer Crossover Dutch Shipyard 2005

This beautiful lady boards the twin Deutz TBD 616 – V16 x 1080 hp

Fuel capacity 79.000 l

Crusing speed 12 kn

Maximum speed 13 kn

Range 7000 NM

Water capaciy 5000 l

8 cabins for 14 berths, 36 passengers

Generators DEUTZ 1 x 85 kW and 1 x 28 kW

4.40 mt outboard 25 hp tender

ZF gearboxes

Buncoolers ( 2 heat exchangers) connected to main engines

Hydraulic system pump PARKER

Bow thruster PARKER

Hydraulic crane on wheelhouse Palfinger

Anchor winch

2 anchor chains

VHF x 2

Radar, GPS, AIS system, automatic pilot, SAT and magnetic compass

Echosounder, searchlight

Hot opportunity

LOA 48,50m, beam 8,00m, draft : 2,10m, airdraft 9,98m

1st owner, unused

• Double glazings in aluminum profiling
• Built as commercial vessel by Dutch Shipyard
• Built under RT 500 hull regulations by Veritas Bureau
• Building material : 9mm steel
• Unused, yet always professionally maintained
• High-end materials throughout the ship
• Latest underwatership service in January 2019 in Belgium
• Lowered price : €1.650.000,-
  Keen to sell
  Status : Available in Antwerp, BelgiumAccommodation
• Interior : Original high-end finish
• Spacious mutual and private living area’s for owners, passengers and crew
• 3 seperate crew cabins and living area in fore ship
• Total cabins : 8 with ensuite bathing cells
• Expanding possibilities in aft ship (large usable void space)
• Isolated safety windows ‘Rafa’ Holland
• Steel doors ‘Winel’ Holland
• Airco system ‘Heinen & Hopman’
• Potable water tanks : 2 x 25 m³ connected on 2 DBR / Pentax hydrophores

Engines & propulsion

• Main engines : 2 x 794KW Deutz TBD 616-V16, seperate NRF heat exchangers
• Hours : unused
• Gearboxes : ZF type FW4400, ratio 1/5,077
• Fuel : Diesel
• Fuel capacity : 42 m³ + 37 m³ (and 2 x 3,7 m³ dayfuel tanks)
• Propellor shaft in stainless steel
• Gensets :
  85KW main generator Deutz BF 4 M 1013 E (& Stamford UC M224G23 connected)
  28KW Deutz harbour diesel generator F3L912 (& Stamford UC M224G23 connected)
• Hydraulic bow thruster : Parker F11-150-0F-SH-S-000 with HRP Holland 1001 TT propellor
• Rudders : Exalto

Navigation & elektronics

• 2 x VHF DSC : Furuno FM 8800
• Navlight panel : Aqua Signal
• Navtex : Furuno N700A
• Inmarsat C : Furuno Felcom 15/SSAS
• Inmarsat F : NERA F33
• 2 x radar : Furuno FAR-2117
• GPS : Furuno GP-90
• AIS : Furuno FA 100
• Autopilot : Seapilot 75
• Sat compass : Furuno SC50
• Magnetic compass : Kelvin Hughes Observator MK22
• Echosounder : Furuno FCV-581L
• Searchlight : Francis LITE300RG 5/Light

Equipment

• Anchors : 3
  Ridderinkhof OMSW 160
  + 2 x Damen
• 3 x bilge- ballast- deckwash- & firefighting pumps DBR / Johnson FRES 50-205
• Anti corrosion system : ME, Impressed Current System AKBv2
• More detailed info on request

Safety

• Fixed fire extiguishing system in ER : Tyco FM 200
• Fire detection controls in wheelhouse : Minerva Marine T1008
• All internationally required safety aspects on board
• More detailed info on request

Extra

• Hydraulic Palfinger crane on wheelhouse, heavy duty

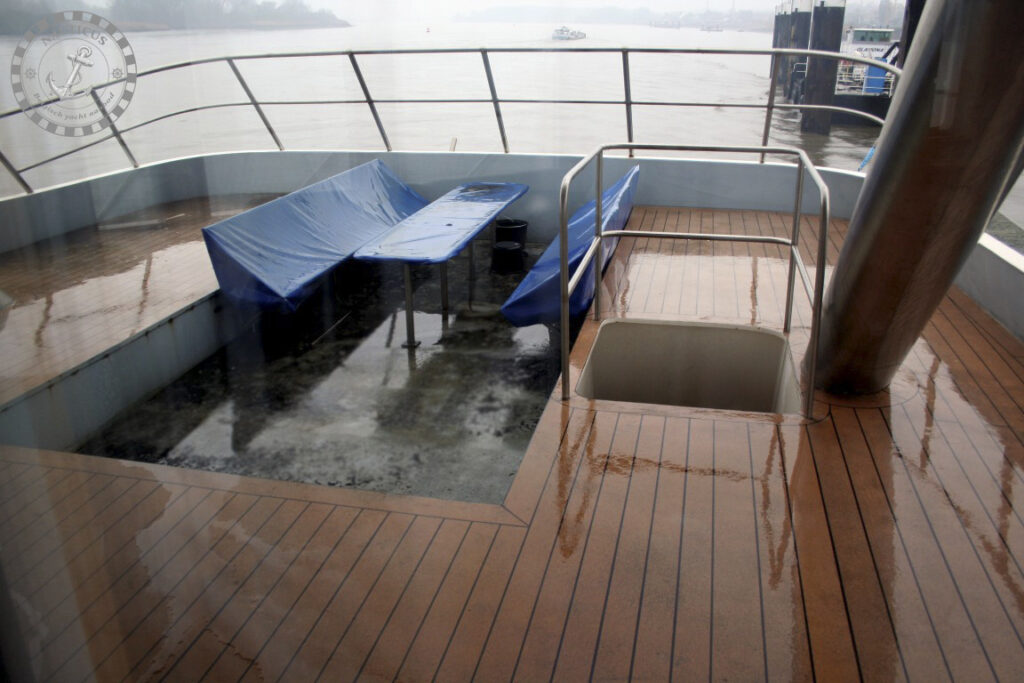

• Large intergrated aft ship swimming platform
• Auxiliary boat on wheelhouse : NDM 4,40 with Yamaha 25hp outboard engine
